Pneumatic Refuse Conveying or Collection
System is a simple conveying system like
any other, that only conveys the refuse
from one point to another within a building
or development or district.
Air
is used to carry the refuse within hidden,
exposed or buried pipe works instead of
truck or labor making the collection process
very hygiene, clean & efficient. Using
vacuum further ensures that all associated
odours from the refuse is kept within the
system.
The system consists mainly of
|
|
| > |
Refuse Chute with hopper for disposal on each level of the building |
|
|
| > |
Discharge valve at the bottom of gravity chute which hold the refuse above it until it is time to remove it
|
|
|
| > |
Bleed-in-valve which admit air into the system during operaton |
|
|
| > |
A network of refuse
conveying pipes using our Acoustic
Cellulose Fiber Pipe that ensures
in operation any refuse hitting noise
along the pipe network is reduced
to a minimum.
|
|
|
| > |

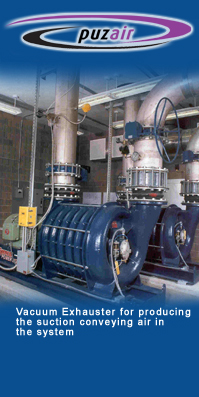

A central plant
that houses the vacuum producer which
provides the suction power to the
system
|
|
|
| > |
An odour treatment
device which clean the exhaust air
from the system
|
|
|
| > |
A Refuse Storage Container or Compactor with a Guide Rail System or Our Sir-Lift System if the Container has to be located away from the central plant |
|
The information which we require to make an offer are: |
|
|
| > |
A Layout Plan of the development in scale form both plan & elevation view |
|
|
| > |
The total area of the development or number of emloyee working there or space standard adopted |
|
|
| > |
Location of the Refuse Center if any or perfer loaction of the waste container |
|
|
| > |
General Service Data |
|
|
| > |
Any other specific preference of clients |
|
|
|
|
 |
|
Fire Rated Refuse Hopper for Refuse Disposal via the Gravity Chute with Lockable Option |
|
 |
|
|
Refuse Chute, whether external or cast into the building is used to collect the refuse from all floors
|
|
 |
|
Pneumatic Actuated Dump Valve is used to temporary hold the refuse at the bottom of each chute |
|
 |
|
| Buried Conveying Pipe |
|
 |
|
High Level Cyclone Unit for high Volume Waste Separation |
|
